Scene and Social Awareness in Trajectory Prediction

Re-ranking a predictor's candidate futures with Direct Preference Optimization, so the planner sees safe, socially reasonable trajectories first.

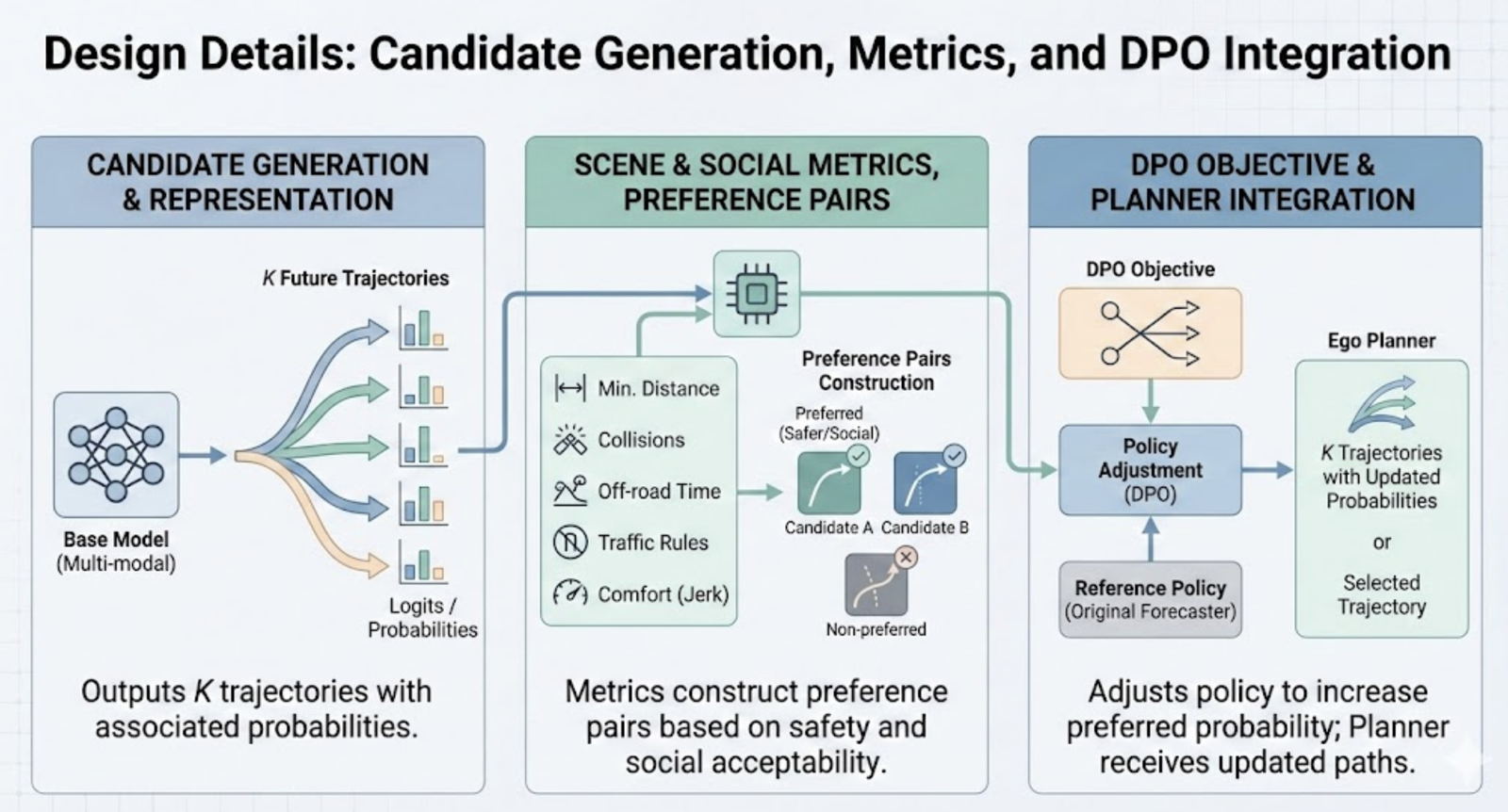

Pipeline: candidate generation, scene and social metrics with preference pairs, DPO objective and planner integration
Method overview: candidate generation → scene and social metrics → DPO adjustment → planner.

Self-proposed final project for CS 267, UC Riverside, Fall 2025 · with Aadhar Chauhan · Source on GitHub · Report (PDF)

Teams chose their own final-project topics, and this problem and approach were ours.

The problem

A self-driving car’s motion planner depends on predictions of where everyone else will go. Most trajectory predictors are trained to output the most likely futures. The most likely future is not always the most useful one for planning: a kinematically probable path can run into a parked obstacle or cut off another driver.

Driving datasets record what agents did. They do not say which predicted futures are safe, comfortable, or socially appropriate, so a model trained only on likelihood has no signal for those qualities.

Our approach

Instead of replacing the predictor, we add a lightweight preference layer on top of it:

  1. Candidate generation. A base predictor proposes K possible futures for each agent.
  2. Scene and social metrics. Each candidate is scored with simple, interpretable checks: staying in the lane, keeping a safe distance from obstacles and other agents, and making forward progress.
  3. Preference pairs. For each agent, the best-scoring candidate becomes the “chosen” trajectory and the worst becomes the “rejected” one. No human labeling is needed.
  4. DPO. Direct Preference Optimization shifts probability toward the preferred candidates, while a frozen reference policy keeps the adjusted distribution close to the original predictor:
\[\mathcal{L}_{\mathrm{DPO}} = -\log \sigma\!\left(\beta\left[\log\frac{\pi_\theta(y_w\mid x)}{\pi_{\mathrm{ref}}(y_w\mid x)} - \log\frac{\pi_\theta(y_l\mid x)}{\pi_{\mathrm{ref}}(y_l\mid x)}\right]\right)\]

Here \(y_w\) is the chosen trajectory and \(y_l\) the rejected one. The re-weighted candidates are then passed to the planner.

Implementation

We extended highway-env with an intersection scenario that has static obstacles and predicted futures drawn on top. Each episode places five random obstacles in the intersection. For each vehicle, a kinematic model with random acceleration and turn-rate perturbations generates K = 5 candidates over a 12-step horizon at 15 Hz. A small MLP takes the vehicle’s state (position, velocity, heading) and outputs a distribution over its K candidates. It is trained online with the DPO loss above (β = 0.1) against a frozen reference copy of itself.

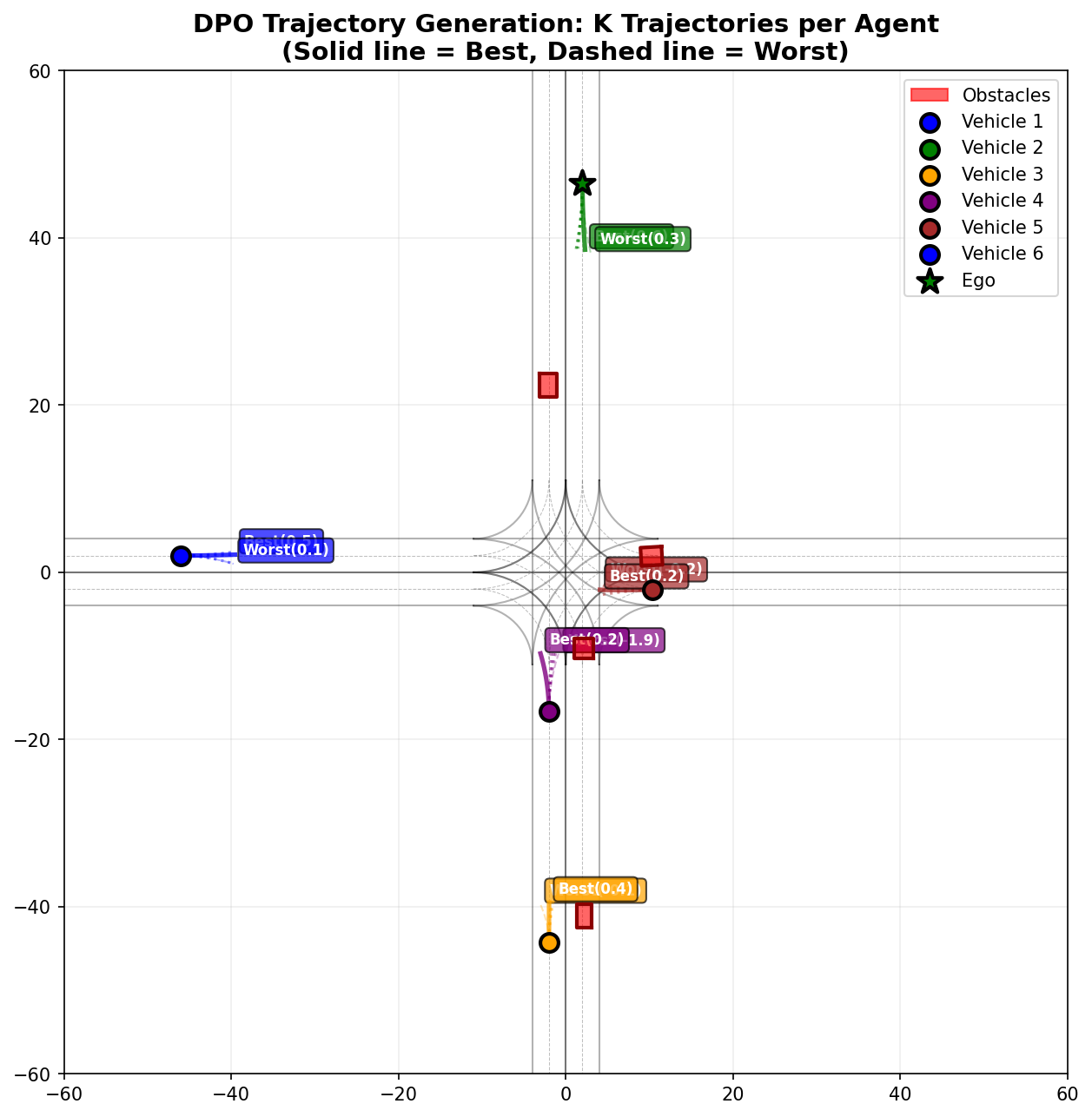

Intersection with K candidate trajectories per vehicle; best solid, worst dashed
K candidates per vehicle at an intersection with obstacles (red). Solid lines are the best-scoring candidates and dashed lines the worst.

Results in highway-env

We trained the preference layer for 50 episodes in the intersection scenario, then compared trajectory quality before and after DPO training (compare_policies.py):

Metric Before DPO After DPO Change
Avg. best score −0.452 0.158 +0.610
Avg. worst score −1.005 −0.347 +0.658
Avg. lane violations 0.028 0.015 −46%
Avg. obstacle violations 1.550 0.817 −47%

Obstacle violations dropped by 47% and lane violations by 46%, and both the best and worst candidates scored higher after training.

Robot–human scenarios

We did not finish connecting the re-ranked predictions to a downstream planner in highway-env within the project timeline. To see how the preference layer behaves on top of a learned predictor, we also ran it in a smaller robot–human navigation setting. There, human motion comes from the Social Force Model and multi-modal predictions come from SocialVAE.

  • Corridor: two people walk past each other while a third stands nearby and shifts around unpredictably. SocialVAE’s most likely prediction often heads straight into the standing person. After preference re-weighting, the paths that steer around them get more weight.
  • Doorway: two groups approach a door from opposite sides, and it opens at t = 8, creating a brief bottleneck. Some predicted futures nearly collide in the doorway. The preference layer moves probability toward futures that slow down or yield.

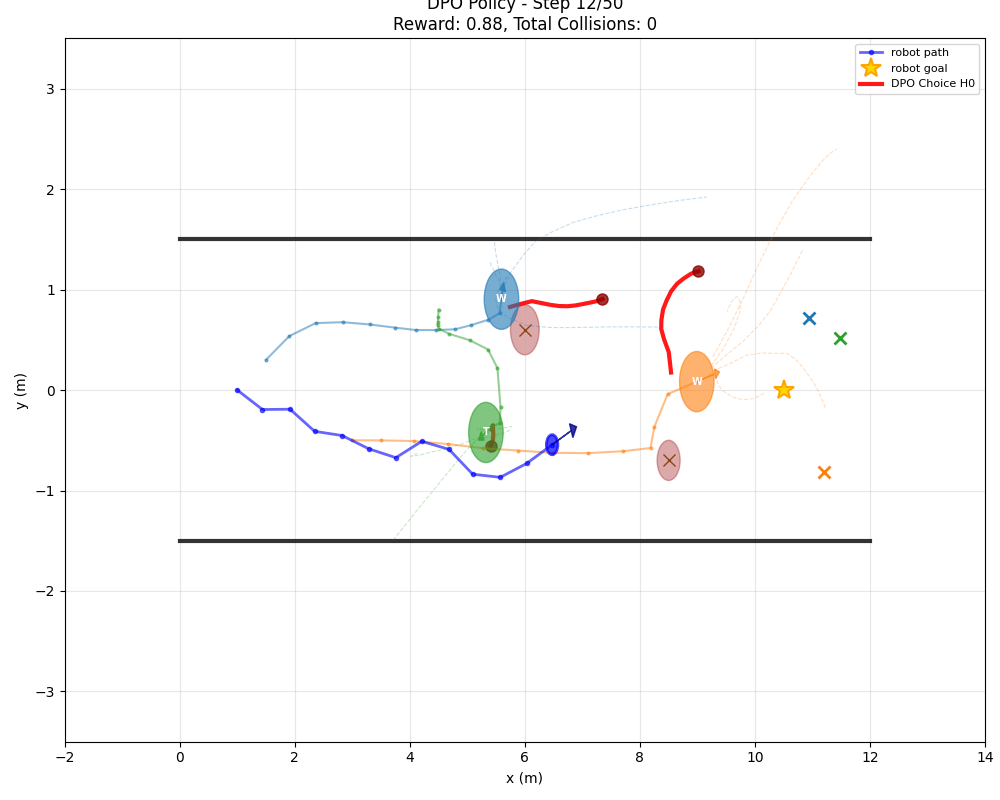

Corridor scenario with predicted human paths and the DPO-chosen path
Corridor scenario.

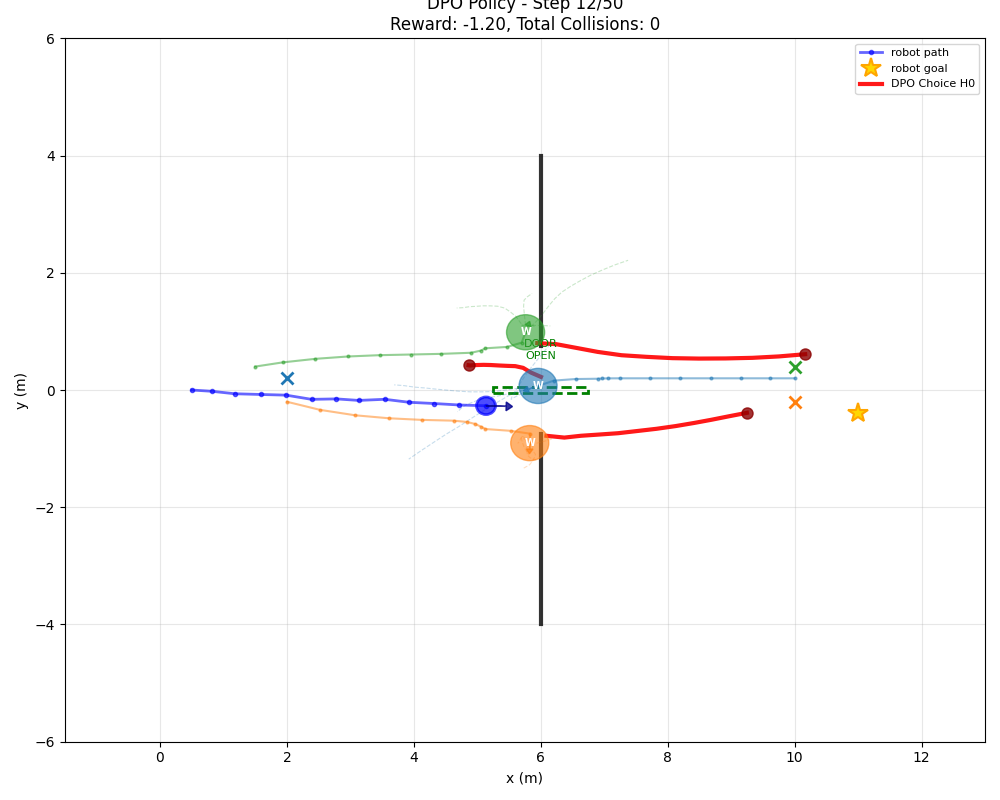

Doorway scenario with predicted paths converging on the door
Doorway scenario.

Limitations and next steps

In both robot–human scenarios, the preference layer consistently favored safer, more socially compliant futures over merely likely ones, but those results are qualitative. The highway-env numbers come from a simplified setup: 50 training episodes, with candidates from a kinematic model rather than a learned predictor. Neither is yet a planner-level benchmark. Other limitations:

  • The metrics are hand-written rules, and the preference pairs are built heuristically, so they could encode unintended biases.
  • The small-scale pedestrian scenes do not capture vehicle dynamics or high-speed interactions.

Next steps are to finish the highway-env integration and measure collision rate, off-road violations, and planner performance against the unadjusted predictor; to learn the metrics instead of hand-writing them; and to test whether the preference layer transfers across different base predictors.
